Description
The product can Only cut off L . Rated voltage: 230V; Frequency: 50Hz/60Hz 1.Remote control ON/OFF at anytime from anywhere by phone. 2.Review current ,voltage, leakage current, total kWh on phone 3. Timer function in smartlife TUYA app 4.Can set over voltage/under voltage/over current/leakage current in app or can set these by manual 5.Under voltage protection 76-240V (adjustable) 6.Over voltage proteciton 220-265V (adjustable) 7.Over current protection 1A-63A (adjustable) 8.Reconnect time (delay on time): 1s-500s 9.Voltage/current/kW calibration: -9.9%-9.9% 10.Action time: 1-30s (detault 1s) 11. power consumption less than 2W Note:This meter Only supports 2.4G Wireless Network, NOT for 5G

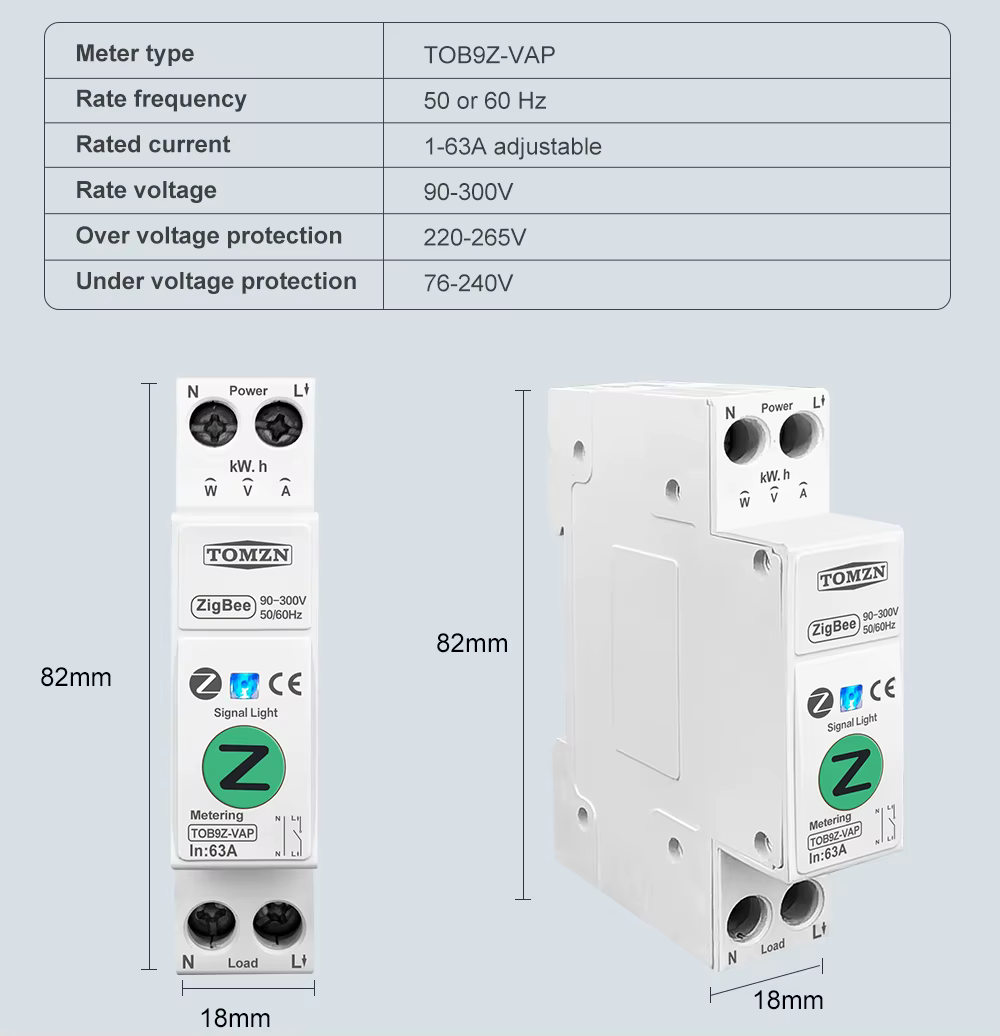

Specifications
| Zigbee | |
| TOB9S-VAP | |
| 50 or 60 Hz | |
| 1-63A adjustable | |
| 90-300V | |
| 220-265V | |
| 76-240V | |
| 2 Years | |
| SmartLife / Tuya | |
| 82*18 MM |
Key features

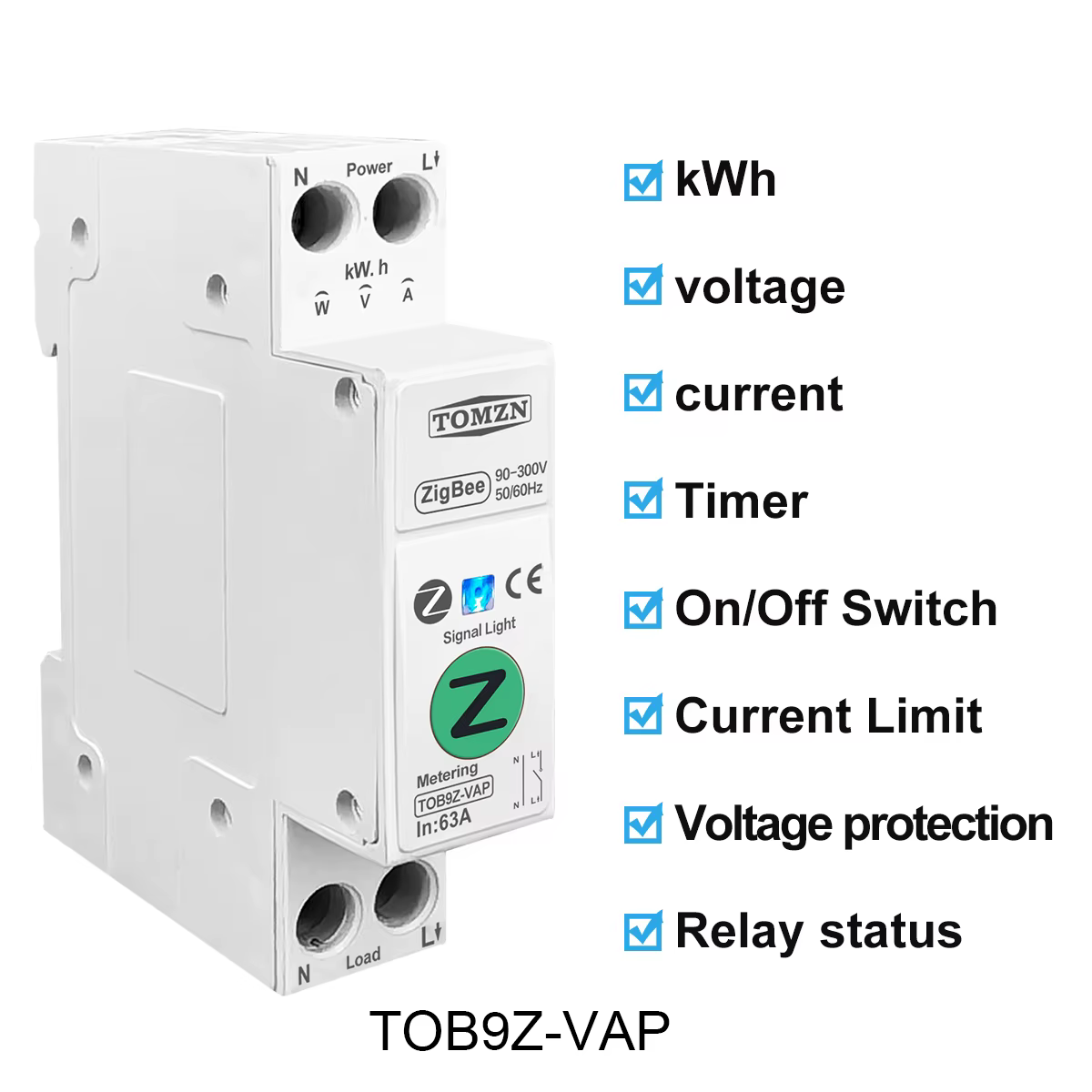

- A smart circuit breaker that operates via Zigbee Hub.
- Complete control through the Tuya Smart and Smart Life apps.
- Simple, screenless design with all settings and measurements accessible through the app.
- Real-time measurement and monitoring of voltage, current, power, and energy consumption (kWh).

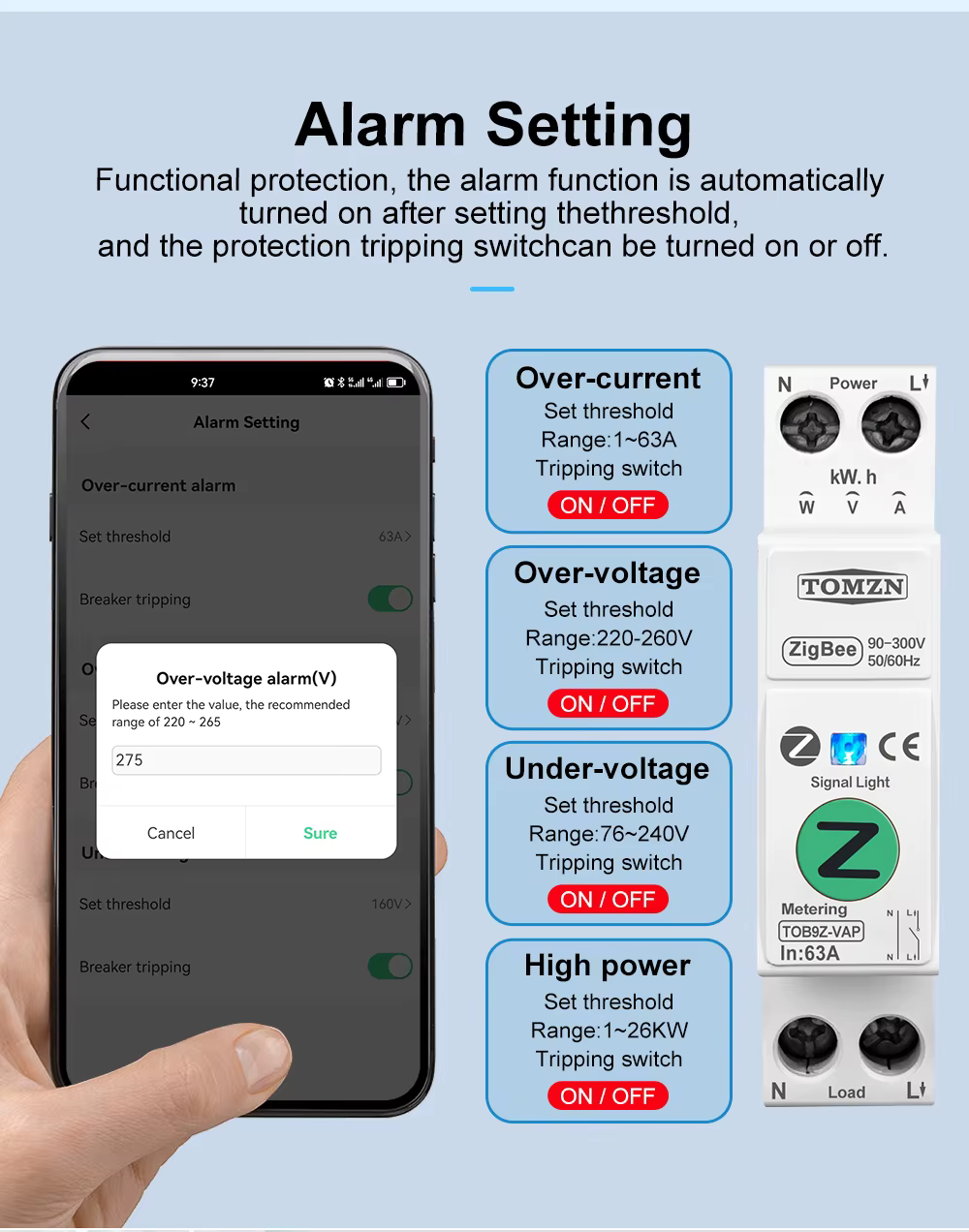

- Overvoltage and undervoltage protection with adjustable protection limits.
- Overcurrent protection.
- Overpower protection.
- Automatically reconnects power after the cause of the outage is resolved.
- Create schedules, timers, and smart scenarios through the app.
- Supports voice control with Amazon Alexa and Google Assistant.
- In-panel DIN rail mounting within the electrical panel.
Common uses
- Control your electricity remotely from anywhere.
- Protect your home appliances from voltage surges and drops.
- Monitor your electricity consumption in real time.
- Manage electrical loads in homes, offices, and shops.
- Automatically turn electrical circuits on and off according to schedules.
- Track your energy consumption to reduce your electricity bill.
Package contents
- Smart circuit breaker.
- User manual.
- Original packaging.
How to use
- The device is installed inside the electrical panel by a qualified electrician.
- Connect the device to the power supply according to the wiring diagram.
- Download the Tuya Smart or Smart Life app.
- Connect the device to your 2.4GHz Wi-Fi network and add it to the app.
- Set the protection limits for voltage, current, and power.
- Control the power supply, switch it on and off, and monitor all measurements directly from the app.
Product notes
- It does not have a display screen; all data and settings are displayed through the app.
- It does not support Earth Leakage Protection.
- It only works with Zigbee Hub.
- It is recommended that it be installed by a qualified electrician.
- It supports setting protection values and automatic restart after power is restored or the cause of the outage is resolved.
